SNIPER XC FRAME
SNIPER XC FRAME

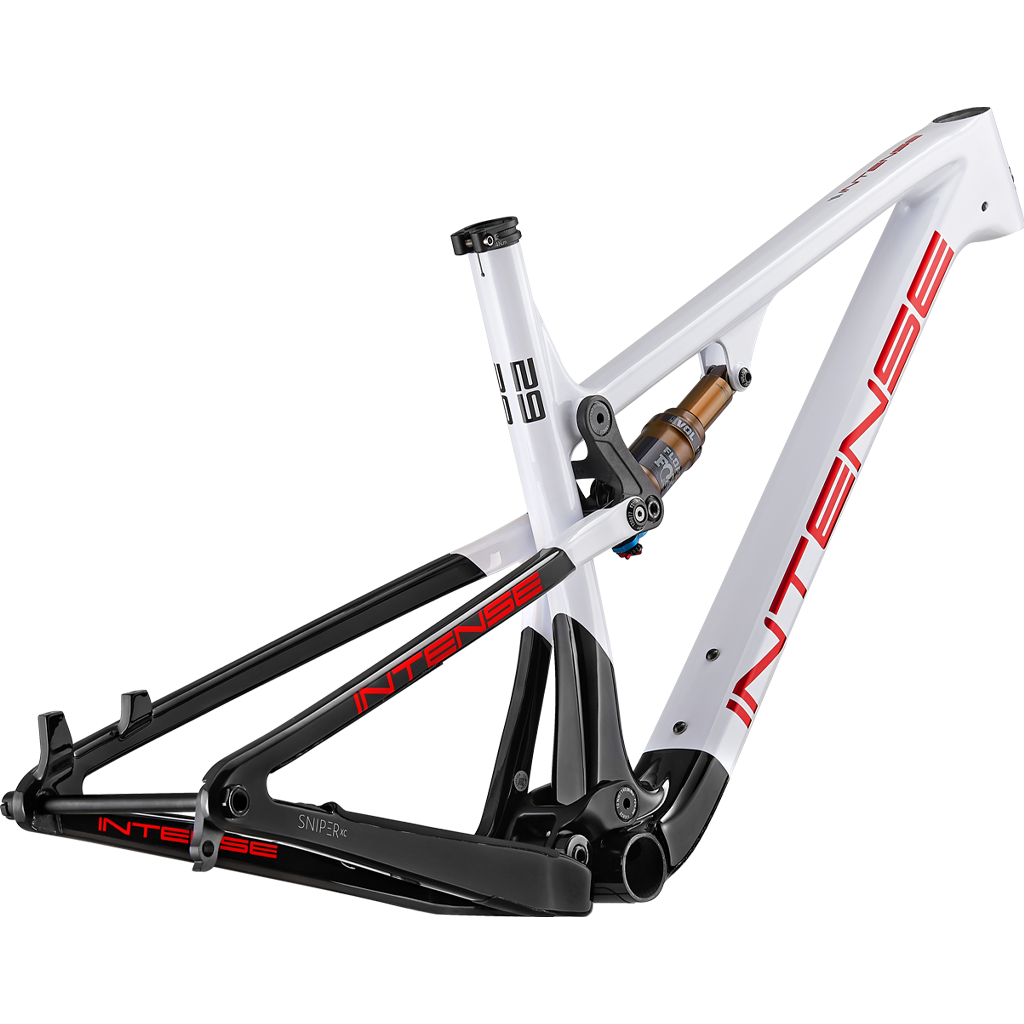

Sniper XC Carbon Mountain Bike Frame
Sniper XC Carbon Mountain Bike Frame
Sniper XC Carbon Mountain Bike Frame
Sniper XC Carbon Mountain Bike Frame

SNIPER XC FRAME

Regular price$4,199.00
/
GST Included.
With the Sniper XC we have created a pure full-suspension XC bike with a true INTENSE spirit. It is a complete system that is designed to work as one in a super light and durable frame.
Color
SIZE
The Sniper XC is all about off-road speed… both up and down. It is fast and fiery, a truly innovative XC bike. It loves going uphill, but it always has one eye on the descents. A longer toptube, shorter stem, wider bars, lower bottom bracket, and slacker head angle all make for an exciting yet balanced bike. It is a complete system that is designed to work as one.Featuring a super lightweight full carbon frame (4lbs 5oz size Medium), rolling on 29” wheels, with progressive XC geometry. The Sniper XC is all about off-road speed… both up and down. It is fast and fiery, a truly innovative XC bike…
WEIGHT 4 lbs 10 oz // 2.09 kg
FRAME Sniper 29 XC Monocoque Carbon Front and Rear Triangle, Carbon Top Link, Titanium Hardware, Internal Shift, Dropper Post and Brake Routing, Flak Guard. 100mm (4") Travel
SHOCK FOX Performance Elite Float DPS, 3-Pos with Adjust

BASED OFF HIGH SETTING

HIGH SETTING SM MD LG XL
WHEELBASE 1127mm / 44.4" 1152mm / 45.37 1179mm / 46.4" 1206mm / 47.5"
TOPTUBE LENGTH 584mm / 23.0" 609mm / 24.0" 635mm / 25" 660mm / 26"
CHAINSTAY LENGTH 439mm / 17.3" 439mm / 17.3" 439mm / 17.3" 439mm / 17.3"
HEADTUBE LENGTH 90mm / 3.54" 95mm / 3.7" 105mm / 4.13" 115mm / 4.5"
HEADTUBE ANGLE 67.5°
67.5°
67.5°
67.5°
REACH 421mm / 16.6" 444.5mm / 17.5" 468mm / 18.4" 490mm / 19.3"
STACK 570mm / 22.45" 575mm / 22.6" 584mm / 23" 593mm / 23.4"
BB HEIGHT 330mm / 13.0" 330mm / 13.0" 330mm / 13.0" 330mm / 13.0"
BB DROP 38mm / 1.50" 38mm / 1.50" 38mm / 1.50" 38mm / 1.50"
SEATTUBE ANGLE 74° 74° 74° 74°
SEATTUBE LENGTH 406mm / 16"
437mm / 17.2"
488mm / 19.2"
538mm / 21.2"
STANDOVER HEIGHT 769mm / 30.3" 771mm / 30.4" 776mm / 30.4" 781mm / 30.75
FORK AXLE TO CROWN 503.7mm / 19.8" 503mm / 19.8" 503.7mm / 19.8" 503mm / 19.8"
FORK OFFSET 44mm / 1.73" 44mm / 1.73" 44mm / 1.73" 44mm / 1.73"
FRONT CENTER 689mm / 27.1" 715mm / 28.1" 742mm / 29.2" 768mm / 30.2"

MODERN DAY XC

It’s all about geometry. Long, low, and slack is no longer just for the downhill crowd, it’s the ‘new normal’ for XC trail bikes too… it’s really a game-changer. We believe that short-travel bikes should descend like their long-travel siblings, so with the Sniper XC, we've created an XC trail bike with an aggressive DH spirit.

LIGHT, FAST, AGILE, FUN

We know that riding the Sniper will fill you with confidence. Climbing, descending, or cruising along… it does it all with powerful yet efficient ease. The way the Sniper covers the ground so quickly and effortlessly is inspiring and it is nothing short of a revelation on the descents.

OPTIMIZED PEDALING

For the Sniper XC our engineering team put the focus on optimized pedaling performance, tweaking the shock tune to suit typical XC riding terrain. The suspension for the Sniper was designed for supple sensitivity on small bumps, mid-support for hard pedaling efficiency in and out of the saddle, and a good progression to the end of the stroke.

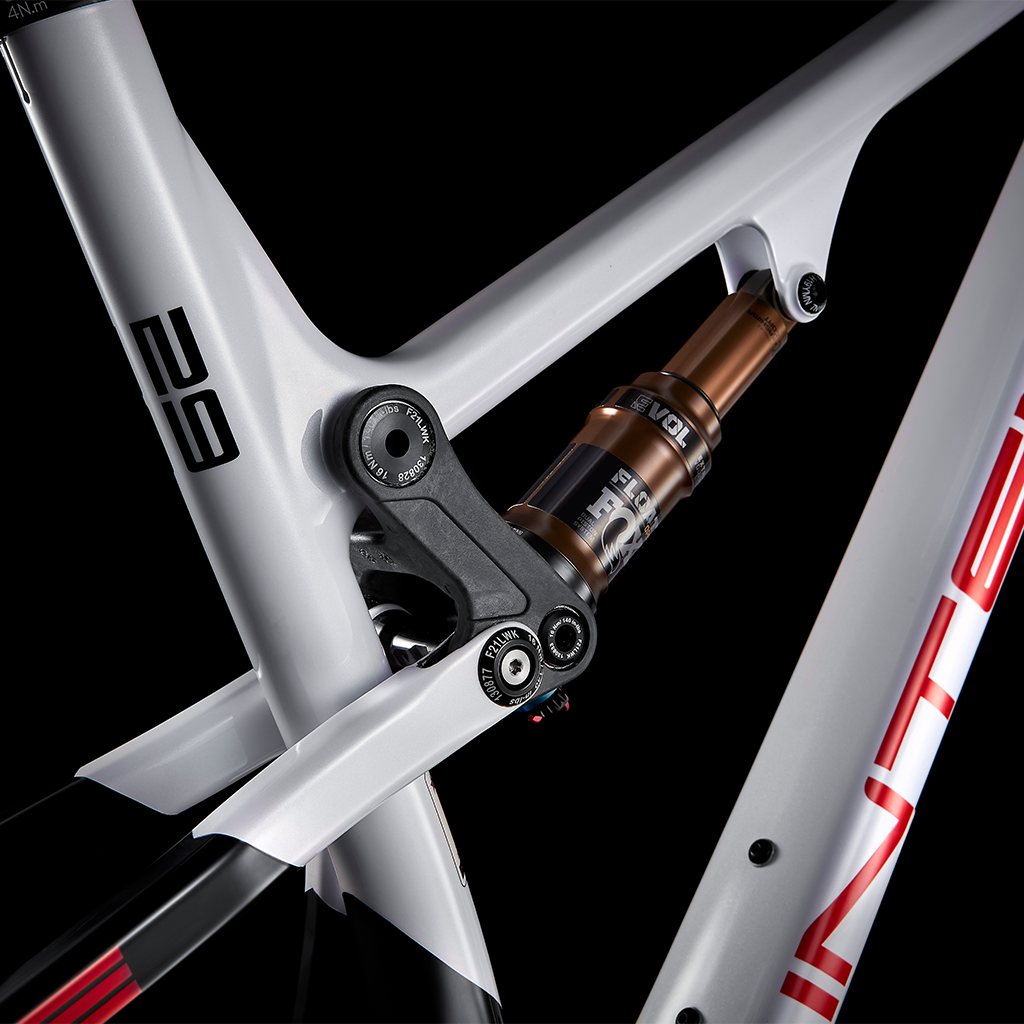

THE JS TUNED XC LINK

JS stands for Jeff Steber (our founder and CEO) and simply put it is a system that focuses on all of the individual parts that make up one of our bikes: from suspension, geometry, wheel size, materials and component spec.

WHOLE BIKE WARRANTY

We deal with warranty on all parts speced on our bikes, so you don't have to worry about the hastle.

LEARN MORE

CRASH REPLACEMENT

If your frame is damaged because of a crash we will make a replacement available, at a discount.

LEARN MORE

EXCHANGE AND RETURNS

INTENSE LLC wants you to love your new bike! If you don’t, simply send it back for a full refund.

LEARN MORE
