PRIMER 29 Frame
PRIMER 29 Frame

PRIMER 29 Frame

Regular price$4,199.00
/
GST Included.
Our 140mm/150mm travel Primer 29 trail bike is pure perfection… everywhere. Providing the most versatile bike in our range.
Build
Color
Size
Rolling on super-fast 29” wheels, the Primer 29 will give you trail-flattening speed over any obstacle, both on challenging climbs and technical descents. In short, the Primer 29 is the ultimate all-around premium trail bike. It could be the only mountain bike you’ll ever need.
WEIGHT 6lbs 14oz //  3.11kg (medium)

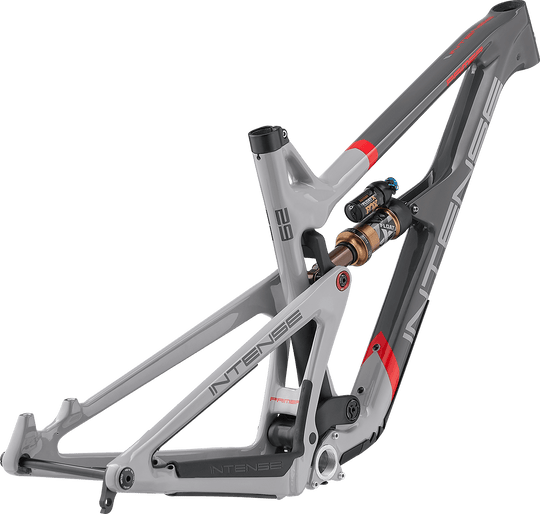

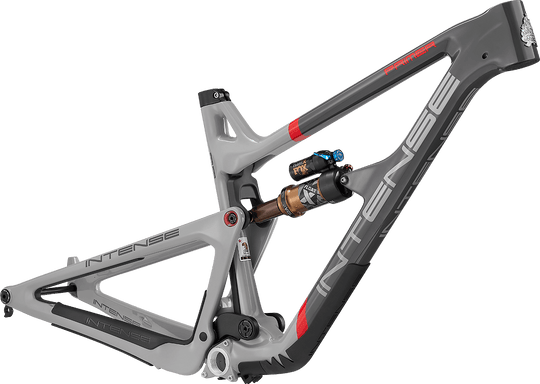

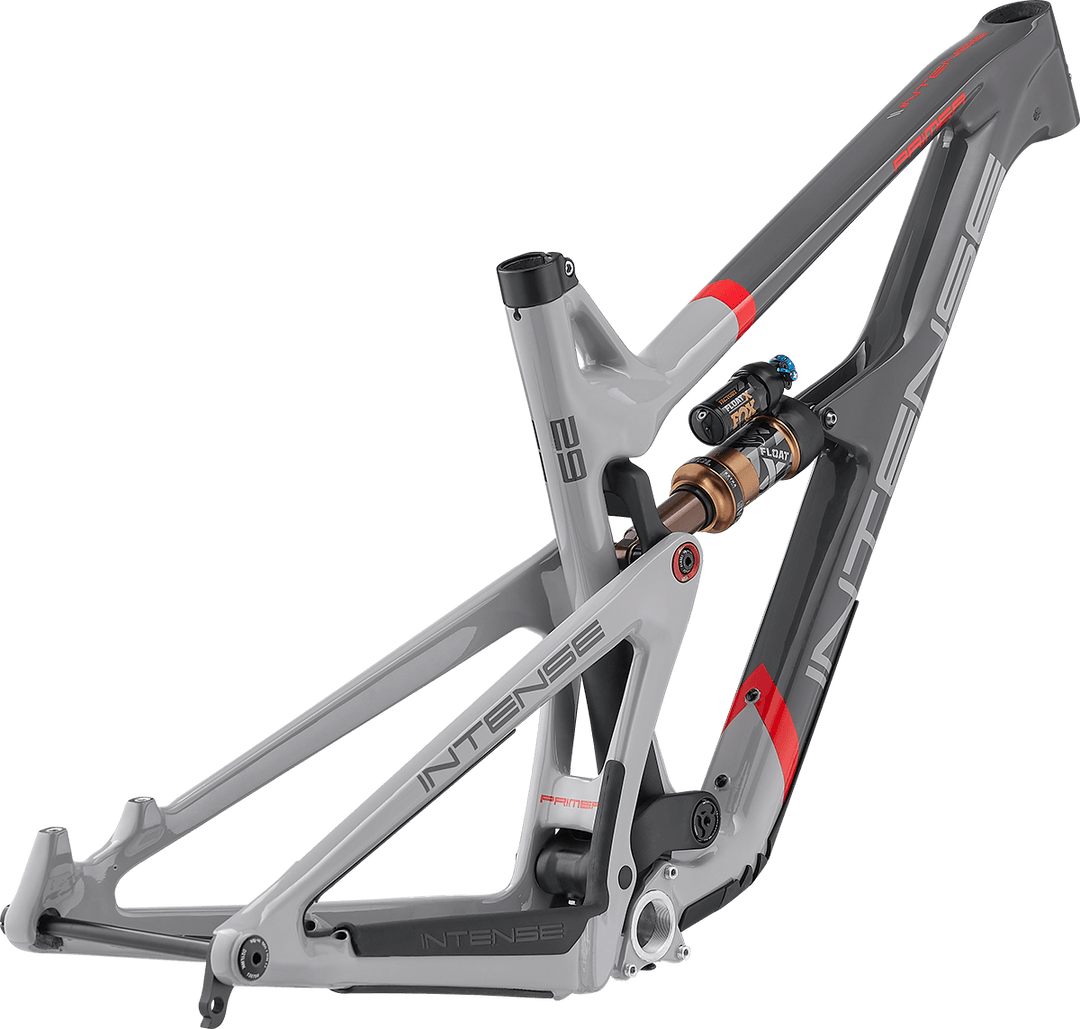

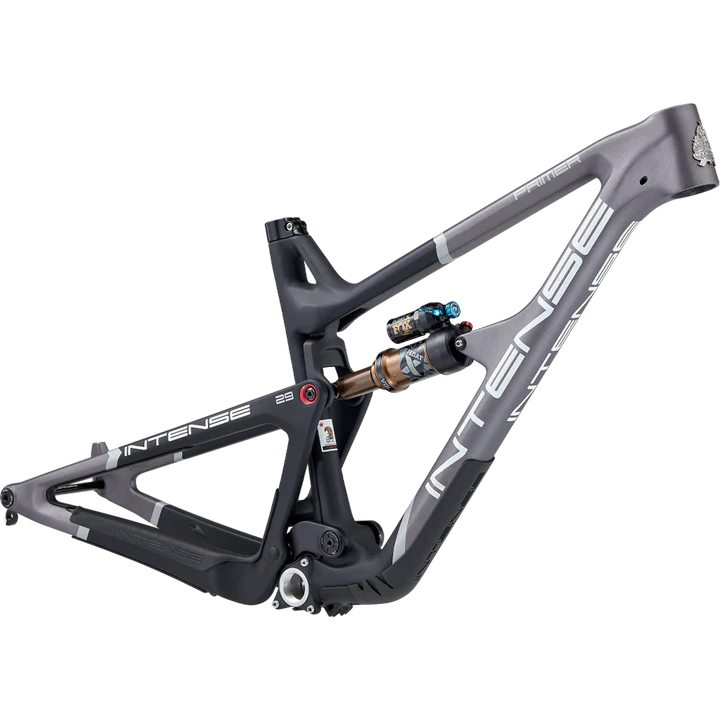

FRAME Primer 29" Optimized Layup Monocoque UD Carbon Front and Rear Triangle, Carbon Top Link, Ti Hardware, internal shift, dropper post and brake routing. ISCG05 mounts, flak guard armor, 140mm (5.5") travel
SHOCK
FOX Performance Float X, 210mm x 50mm (140mm), 2-position (open/trail)

BASED OFF HIGH SETTING

HIGH SETTING SM MD LG XL
SEATTUBE LENGTH
408mm / 16.08"
431.8mm / 16."
451mm / 17.8"
476mm / 18.7"
EFFECTIVE TOPTUBE
578mm / 22.8"
608mm / 24"
636mm / 25"
673mm / 26.5"
STACK
612mm / 24"
612mm / 24"
622mm / 24.5"
640mm / 25.2"
REACH
411mm / 16.2"
442mm / 17.4"
467mm / 18.4"
497mm / 19.6"
BB HEIGHT 346mm / 13.6"
346mm / 13.6"
346mm / 13.6"
346mm / 13.6"
BB DROP 29mm / 1.1"
29mm/1.1"
29mm / 1.1"
29mm / 1.1"
HEADTUBE LENGTH 90mm / 3.5"
90mm / 3.5"
90mm / 3.5"
90mm / 3.5"
HEADTUBE ANGLE 65.7°
65.7°
65.7°
65.7°
SEATUBE ANGLE (EFFECTIVE)
75°
75°
75°
75°
STANDOVER HEIGHT 815mm / 32"
815mm / 32"
815mm / 32"
815mm / 32"
CHAINSTAY LENGTH 440mm / 17.3"
440mm / 17.3"
440mm / 17.3"
440mm / 17.3"
WHEELBASE 1170mm / 46" 1200mm / 47.2" 1229mm / 48.4" 1267mm / 50"
LOW SETTING SM MD LG XL
SEATTUBE LENGTH 408mm / 16" 431mm / 17" 451mm / 17.8" 475.5mm / 18.8"
EFFECTIVE TOPTUBE 580mm / 22.8" 610mm / 24" 639mm / 25.1" 675mm / 26.6"
STACK 616mm / 24.3" 617mm / 24.3" 626mm / 24.7" 645mm / 25.4"
REACH 405mm / 16" 435mm / 17" 461mm / 18" 491mm / 19.3"
BB HEIGHT 339mm / 13.3"
339mm / 13.3"
339mm / 13.3"
339mm / 13.3"
BB DROP 36mm / 1.4"
36mm / 1.4"
36mm / 1.4"
36mm / 1.4"
HEADTUBE LENGTH 90mm / 3.5"
90mm / 3.5"
90mm / 3.5"
90mm / 3.5"
HEADTUBE ANGLE 64.8°
65.1°
65.1°
65.1°
SEATTUBE ANGLE (EFFECTIVE)
74°
74°
74°
74°
STANDOVER HEIGHT 810mm / 31.9"
809mm / 32"
819mm / 32"
822mm / 32.4"
CHAINSTAY LENGTH 441.5mm / 17.4"
441.5mm / 17.4"
441.5mm / 17.4"
441.5mm / 17.4"
WHEELBASE 1171mm / 46" 1201mm / 47.3" 1230mm / 48.4" 1267mm / 49.9"

VERSATILITY

The Primer trail bike is the most versatile model in our range. With 140mm of rear travel and 150mm up front, we have designed a bike that is capable and balanced but also nimble and fun at the same time, giving you confidence on long, all-day rides, jumps, or laps in your local woods.

TRUE TO TRAIL

The frame is the heart and soul of any bike. Our Primers are built around our perfectly designed monocoque carbon frame, with a dual-strut design rear triangle, optimized carbon fiber layup, a carbon top link, and adjustable 'Flip Chip" technology.

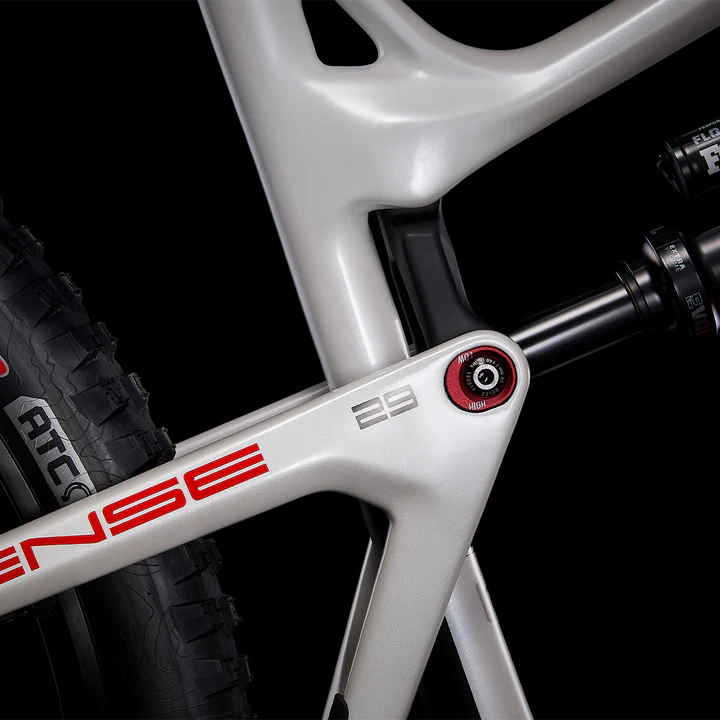

FLIP CHIP ADJUSTMENT

The Primer 29 has a 'Flip Chip' feature which allows you to alter your bike's geometry between two positions. The High setting is best in technical terrain, while the Low is more suitable for flow and bike park-style riding.

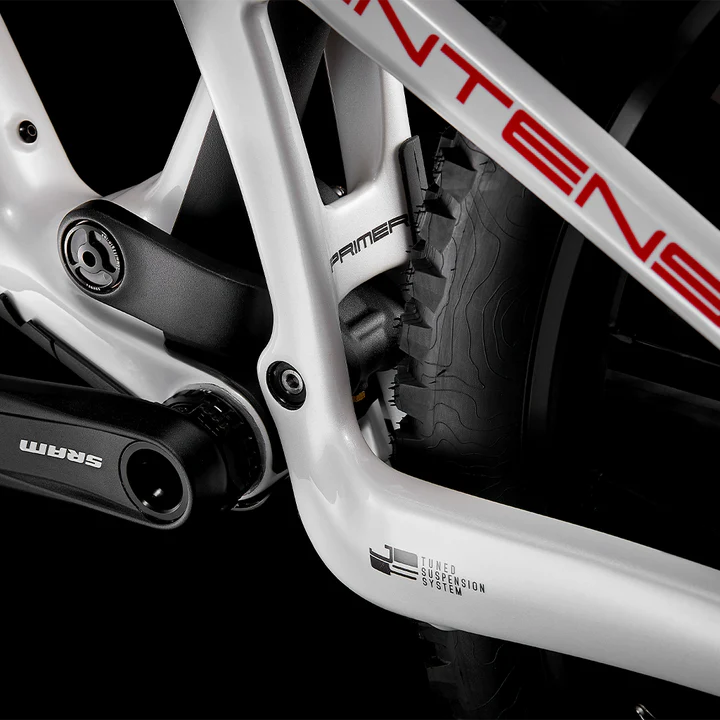

THE JS TUNED TRAIL LINK

We talk about JS Suspension a lot here at INTENSE. JS stands for Jeff Steber (our founder and CEO); simply put, it is a sophisticated suspension system that uses two counter-rotating links to connect the front and rear triangles of the bike. The links are precisely placed to separate the pedaling and braking forces from the suspension performance. Every model in our range has its own personal and specific JS tune.

WHOLE BIKE WARRANTY

We deal with warranty on all parts speced on our bikes, so you don't have to worry about the hastle.

LEARN MORE

CRASH REPLACEMENT

If your frame is damaged because of a crash we will make a replacement available, at a discount.

LEARN MORE

EXCHANGE AND RETURNS

INTENSE LLC wants you to love your new bike! If you don’t, simply send it back for a full refund.
